The primary structural and mechanical specifications for this model follow below.
Weight & Dimensions
-
- Unloaded Vehicle Weight (UVW): 8,280 lbs
- Hitch/Pin Weight: 1,319 lbs
- Gross Vehicle Weight Rating (GVWR): 9,995 lbs
- Exterior Length: 29 feet 10 inches
- Exterior Height: 12 feet 9 inches
- Exterior Width: 8 feet 0 inches
Holding Tank Capacities
-
- Fresh Water Tank: 55 gallons
- Gray Water Tank: 71 gallons
- Black Water Tank: 39 gallons
- Propane (LP) Capacity: 60 lbs (Two 30 lb tanks)
- Water Heater: 6 gallons
Climate & Construction Specs
-
- Furnace: 35,000 BTU
- Air Conditioner: 15,000 BTU main unit (prepped for a second bedroom AC)
- Roof Insulation: R-40 double insulated
- Floor Insulation: R-30 double insulated
- Walls Insulation: R-9 fully laminated
- Underbelly: Heated and enclosed with 12V heat pads on holding tanks

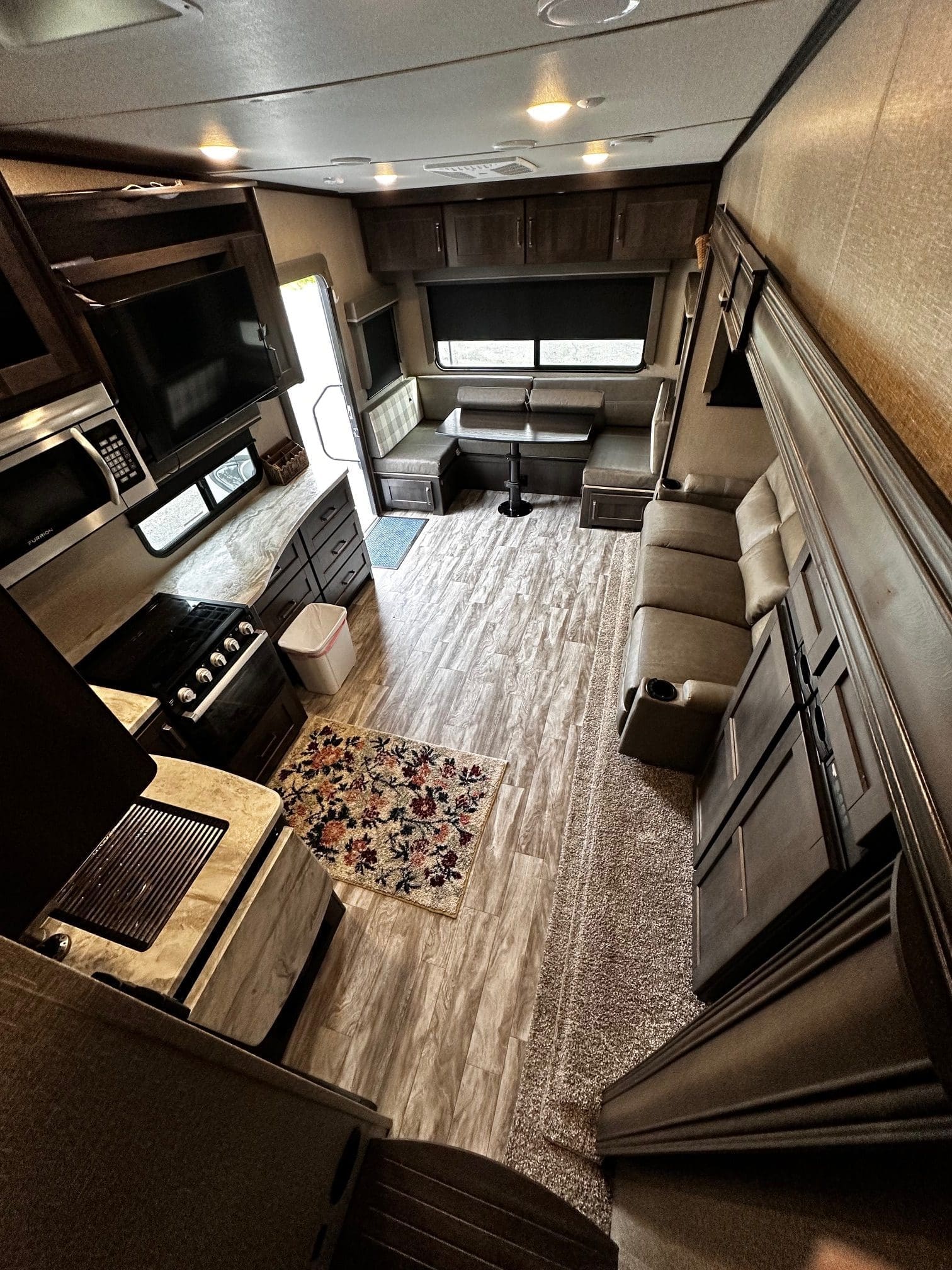

Interior & Living Features
-
- Sleeping Capacity: Up to 4 people
- Main Bed: Walk-around queen bed in the front master bedroom
- Seating: Theater seating with built-in heat and massage options
- Refrigeration: 16 cubic foot 12V DC compressor refrigerator
- Entertainment: 40-inch LED HDTV on a swivel arm
Chassis & Exterior Setup
- Suspension: MorRyde CRE3000 suspension system
- Tires: 15-inch Goodyear Endurance radial tires

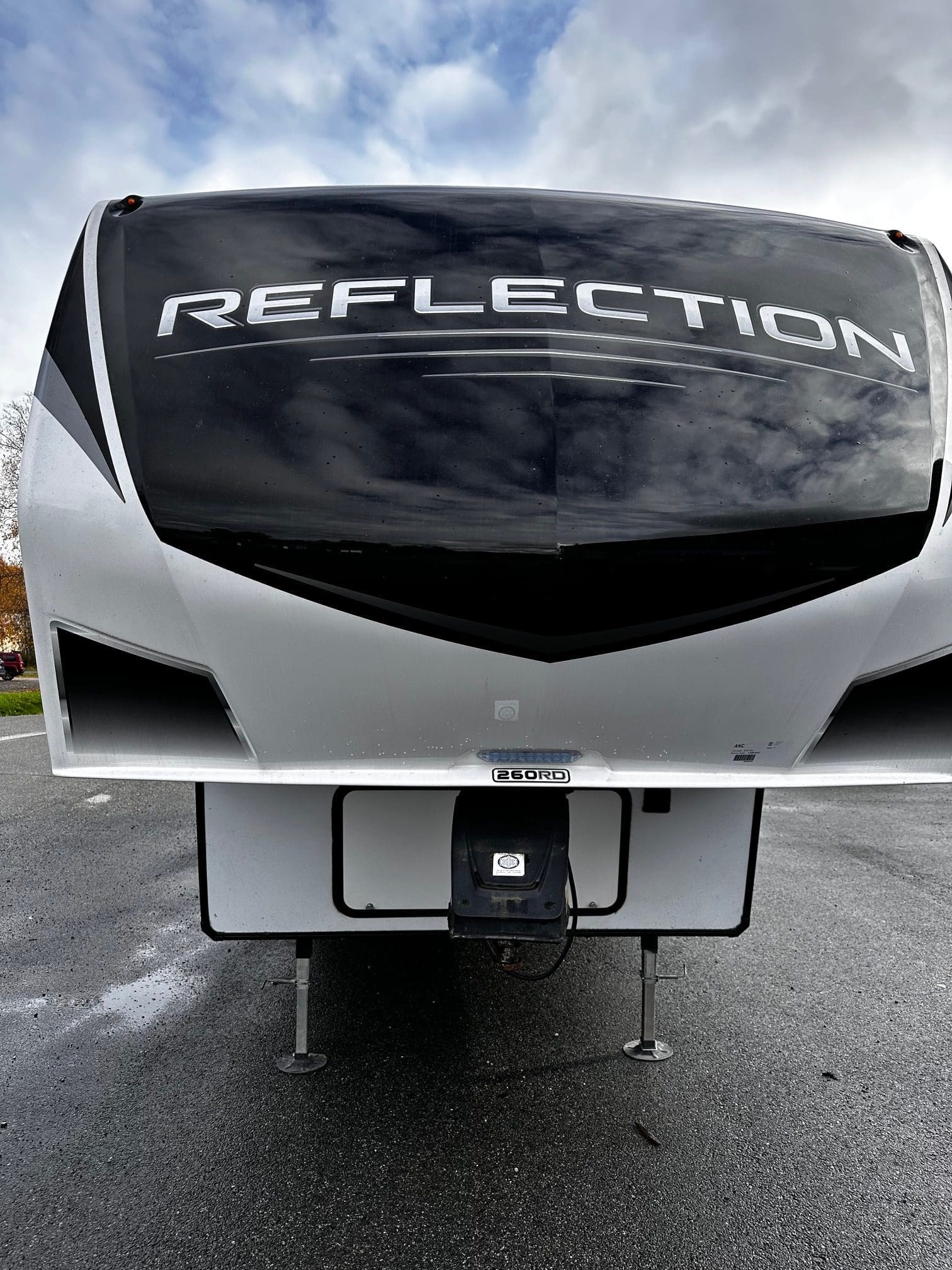

- Pinbox: Turning Point swivel pinbox (allows a 90-degree turning radius for short-bed trucks)
- Leveling: One-Touch automatic leveling jacks
- Awning: 18-foot electric patio awning with integrated LED lights
- Solar: Standard factory solar package (typically 165W panel with a charge controller
